January 22th, 2024 – This research is the first-time effort to clean the direct compression continuous manufacturing (CM) system using only excipients. This cleaning process does not need to dismantle the CM equipment and PAT system. The established PAT system could be used to monitor the displacement of drug residues by excipients.
Patel, D. S.; Méndez, R.; Romañach, R. J. Cleaning of Direct Compression Continuous Manufacturing Equipment through Displacement of API Residues by Excipients. Int. J. Pharm. 2024, 652 (January). https://doi.org/10.1016/j.ijpharm.2024.123849.
Abstract

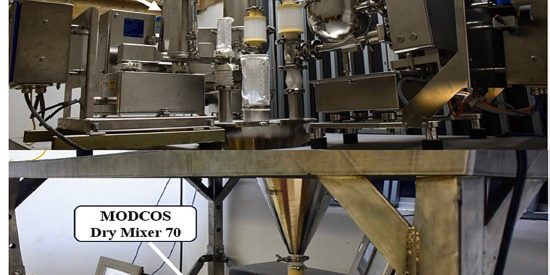

This feasibility study evaluates a cleaning process designed to avoid the use of detergents and reduce operator exposure to the active pharmaceutical ingredient (API). The continuous manufacturing equipment was cleaned using excipients to displace ibuprofen residues from the system. The cleaning process was performed using 3.0 kg of Prosolv® and 3.0 kg of Tablettose® 70. The impact of different volumetric feed rates of the cleaning excipient was assessed. The displacement of API and blend residues was evaluated with in-line near infrared (NIR) spectroscopy. Principal component analysis (PCA) was performed to evaluate the cleaning progress as the Prosolv® flowed through the feeder, mixer and stream sampler. In-place Raman spectra were acquired from the material sticking to detect the ibuprofen residues. The study showed that Prosolv® and Tablettose® can remove ibuprofen residues effectively from the hopper, feeder screw, mixer paddles, shaft and stream sampler. The Process Analytical Technology (PAT) system can be utilized to detect API displacement during the cleaning process. However, dismantling and manual cleaning was required to remove material sticking at the surfaces adjacent to the rotating feeder screws and mixer paddles.
https://www.sciencedirect.com/science/article/abs/pii/S0378517324000838
